Details for Product

WNMG-433-NR-IC5010
MFG Part #
5508509

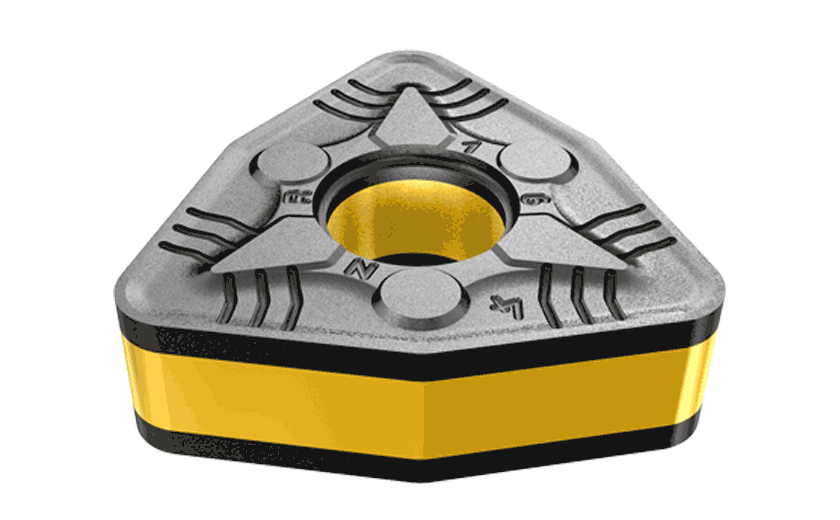

WNMG-433-NR-IC5010 ISCAR SUMOTEC CVD INSERTS

Brand = Iscar
Insert Style = WNMG
Insert Shape = 80° Trigon
Clearance Angle = Negative
Size = 0.5000
Corner Radius = 0.0470
Insert Material = Carbide
Work Material = Cast Iron
Machining Application = Medium-Roughing
Insert Coating = TiCN+Al2O3+TiN
Insert Thickness = 0.1870
Insert Edge Length = 0.3430
Min Depth of Cut = 0.0790
Max Depth of Cut = 0.1970
Min Feed = 0.0091
Max Feed = 0.0217
