Details for Product

Price
2 In Stock
1-003P-025
MFG Part #
5999263

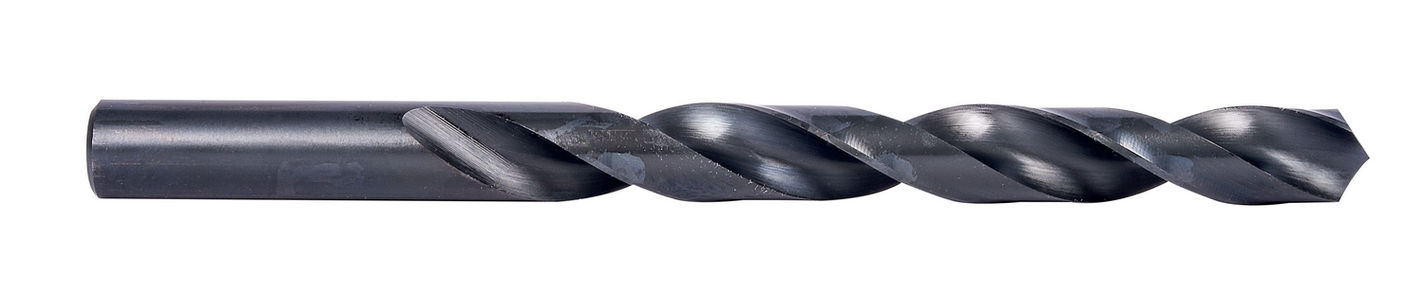

Jobber length drill with straight shank, diameter 0.4040" (Y) with an overall length of 5.1/4" and flute length of 3.7/8" according to ANSI standard with 118° point angle, HSS with steam tempered finish for 4xD drilling without pecking in steel and cast i

Brand = Precision Twist Dril   (Dormer Precision )
Material = High Speed
Coating/Finish = Steam Tempered   (Uncoated )
Angle = 118
Diameter = 0.4040"   (0.4039")   (10.259 mm )   (10.262 mm )   (Y )
Shank Dia. = 0.4039"   (0.4040")   (10.259 mm )   (10.262 mm )   (Y )
Flute Length = 3.8750"   (3 7/8 )
Overall Length = 5.2500"   (133.350 mm )   (5 1/4 )
