Details for Product

Price
1 In Stock
1-050P-049
MFG Part #
5998518

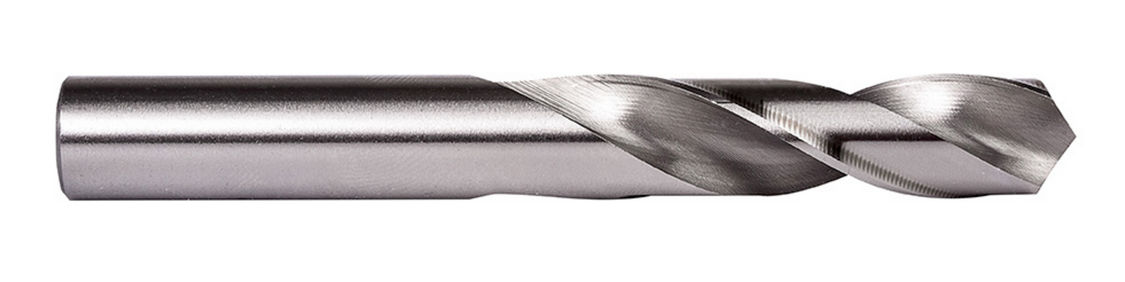

Stub length drill with straight shank, diameter 0.7656" (49/64) with an overall length of 5.1/8" and flute length of 3.1/4" according to ANSI standard with 118° point angle, HSS with steam tempered finish for 2.5xD drilling without pecking in steel, cast

Brand = Dormer Precision   (Precision Twist Dril )
Material = High Speed
Coating/Finish = Steam Tempered   (Uncoated )
Angle = 118
Diameter = 0.7656"   (19.446 mm )   (49/64 )
Shank Dia. = 0.7656"   (19.446 mm )   (49/64 )
Flute Length = 3.2500"   (82.550 mm )   (3 1/4 )
Overall Length = 5.1250"   (5 1/8 )
