Details for Product

DGN-3003UA-IC20
MFG Part #
6002543

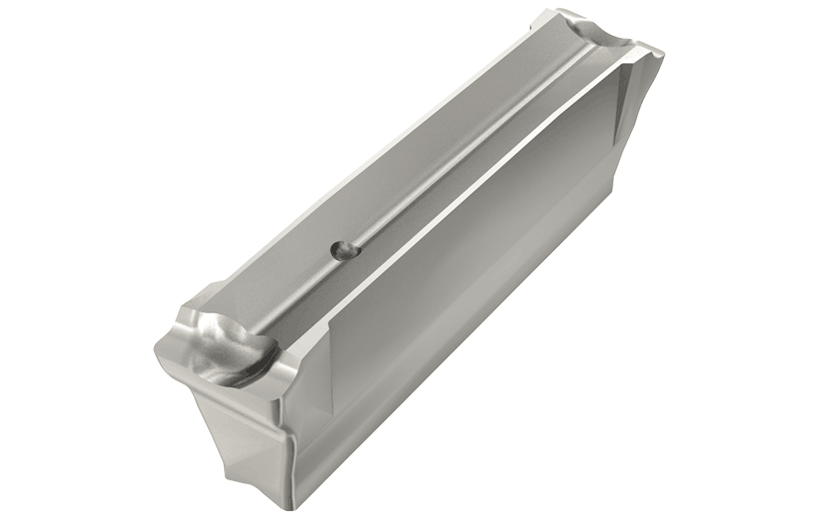

DGN-3003UA-IC20 ISCAR DO-GRIP INSERTS

Brand = Iscar
Insert Designation = DGN
Insert Width = 0.1180
Max Groove Depth = 0.7090
Direction = Neutral
Corner Radius = 0.0100
Insert Edge Length = 0.8070
External/Internal = External
Operation/Application = Grooving / Cut-off
Insert Material = Carbide
Coating/Finish = Uncoated
Work Material = Stainless Steel+Hi Temp+Hardened Metals+Cast Iron+Aluminum and Non Ferrous
Min. Grooving Feed = 0.0016
Max. Grooving Feed = 0.0059
